Excel Dryer XLERATOR® 40575 XChanger Combo Kit – Includes 40502 Recess Kit & 40550 Standard XChanger

Excel XLERATOR 40575 XChanger Combo Kit

The Excel Dryer XLERATOR® 40575 XChanger Combo Kit is a complete stainless steel retrofit solution designed to convert an existing paper towel dispenser and waste receptacle opening into a recessed XLERATOR or XLERATOReco hand dryer installation.

This combo kit includes:

• 40502 ADA Recess Kit

• 40550 Standard Height XChanger Panel

⚠ Hand dryer sold separately.

Complete Retrofit Solution

The XChanger Combo Kit is engineered to install over the footprint left behind by common paper towel dispensers and waste receptacles. This allows facilities to modernize restrooms without major wall reconstruction or surface damage.

When installed properly, the included 40502 ADA Recess Kit helps meet ADA 4-inch protrusion requirements in restroom walkways.

Ideal for:

• Schools and universities

• Airports and transit hubs

• Healthcare facilities

• Government buildings

• Office renovations

• Hospitality properties

Looking for ADA compliant hand dryers ?

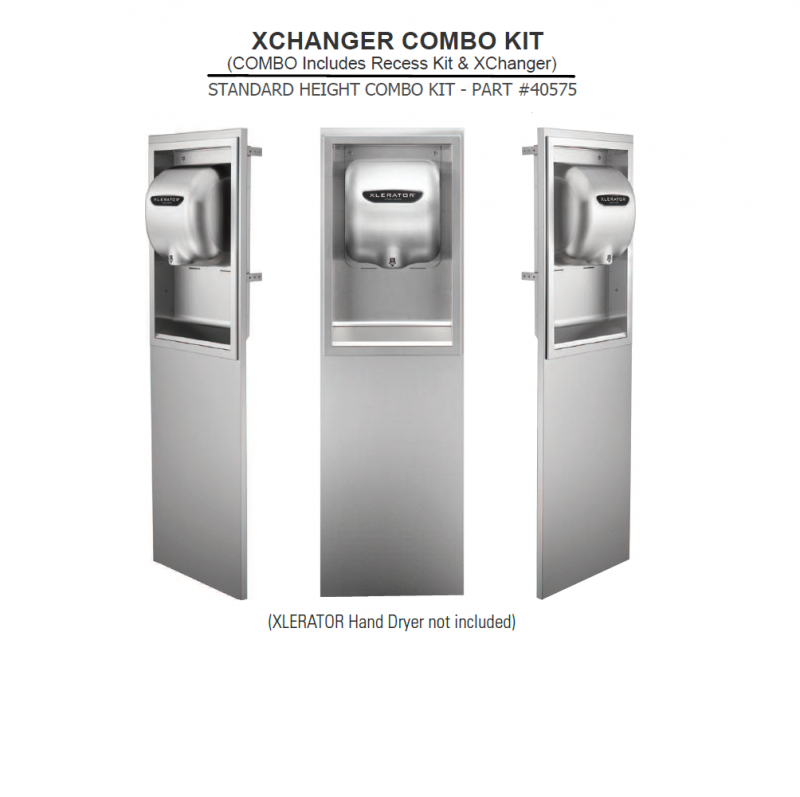

What’s Included in the 40575 Combo Kit

40550 Standard Height XChanger Panel

• Fabricated from 18-gauge type 304 stainless steel

• #4 satin brushed finish

• Designed to cover existing paper towel dispenser openings

• All-welded construction

40502 ADA Recess Kit

• Fabricated from type 304 stainless steel

• Designed to reduce hand dryer protrusion depth

• Supports ADA 4-inch projection compliance when properly installed

Together, these components provide a streamlined, recessed installation solution.

Designed for ADA & Code Compliance

The included 40502 recess kit helps ensure that installed XLERATOR or XLERATOReco hand dryers comply with ADA protrusion guidelines when mounted according to manufacturer specifications.

For projects requiring the ADA height configuration, see the 40576 ADA XChanger Combo Kit, which includes the ADA-height XChanger panel.

Always consult local building codes for compliance requirements.

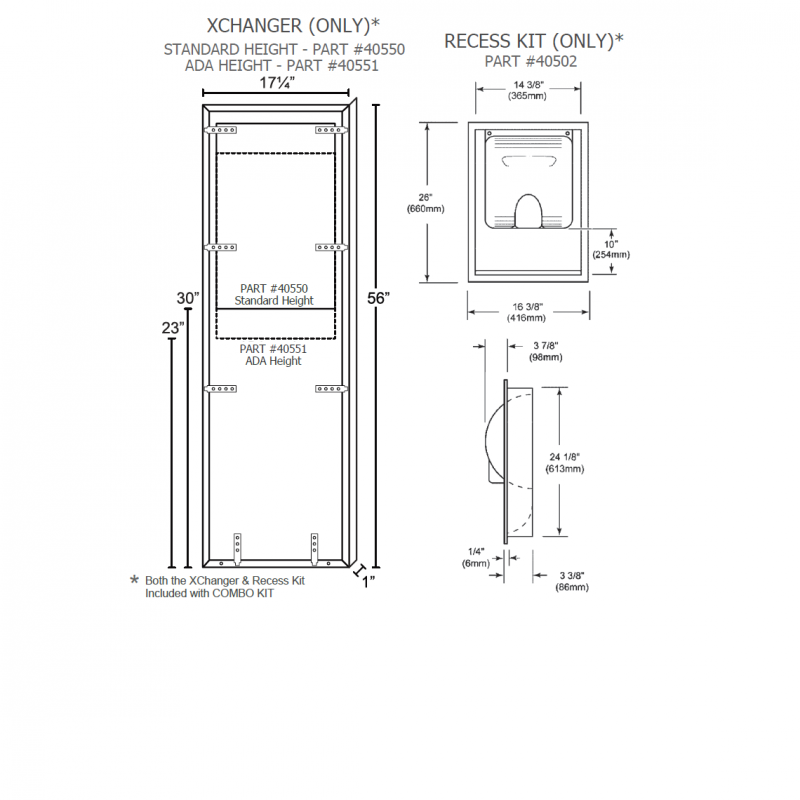

Specifications

XChanger Panel (40550 Standard Height)

• Overall Dimensions: 17 ¼” W x 56” H x 1” D

• Weight: 17 lbs

• Rough Wall Opening: 15 7/8” W x 54 5/8” H

• Material: 18-gauge 304 stainless steel

• Finish: #4 satin brushed

40502 Recess Kit

• Width: 16 3⁄8”

• Height: 26”

• Depth: 3 3⁄8”

• Weight: 11 lbs

• Fabricated from 304 stainless steel

Eliminate Paper Towels & Reduce Maintenance

Upgrading from paper towel dispensers to high-speed hand dryers can significantly reduce:

• Ongoing paper towel purchasing

• Waste disposal costs

• Plumbing blockages

• Janitorial labor

The 40575 XChanger Combo Kit simplifies the retrofit process and allows facilities to transition to energy-efficient hand drying systems with minimal disruption.
