DYSON® Airblade™ HU02 V Series Hand Dryer - White Cover Surface Mounted ADA-Compliant Hands-Under

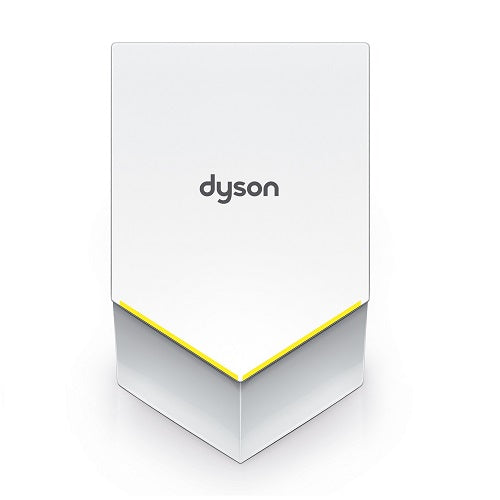

Dyson Airblade V HU02 Hands-Under Hand Dryer

The DYSON® Airblade™ V HU02 is a slim, wall-mounted commercial hand dryer engineered for ADA compliance, hygienic performance, and energy efficiency. This hands-under design features a compact profile and powerful digital motor technology, making it ideal for high-traffic commercial restrooms.

This model is part of our Dyson Airblade hand dryers collection built for performance-driven facilities.

Available SKUs (White Cover):
Low Voltage: 307173-01
High Voltage: 307171-01

Slim ADA-Compliant Profile

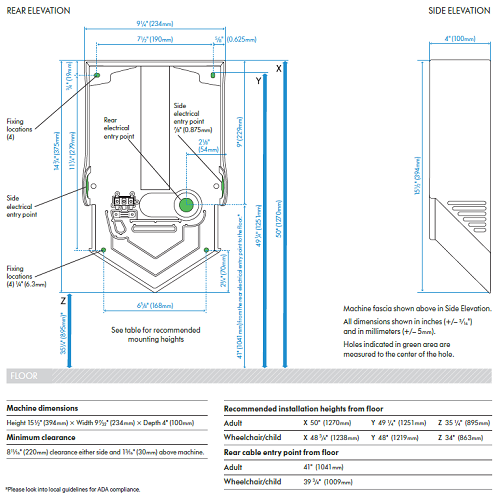

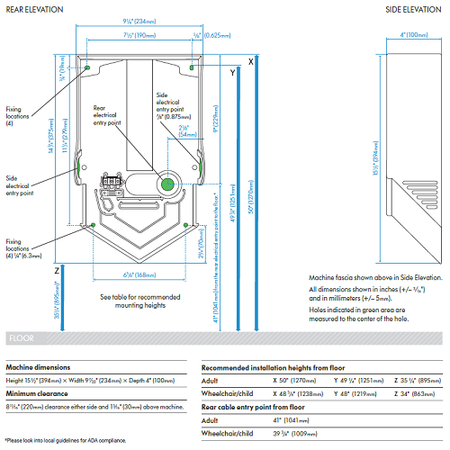

The Dyson HU02 V Series is designed to meet ADA projection requirements when installed according to manufacturer guidelines. Its compact depth makes it suitable for:

• Narrow restroom corridors
• Schools and universities
• Healthcare facilities
• Government buildings
• Airports and transit hubs

For additional accessible models, browse our ADA compliant hand dryers.

Because of its slim housing and hands-under configuration, the HU02 is commonly selected for ADA-focused installations.

High-Speed 12-Second Drying Performance

Powered by Dyson’s 1000W digital V4 brushless motor operating at up to 83,000 rpm and switching 5,500 times per second, the HU02 delivers rapid hand drying.

Performance highlights:

• 12-second dry time
• Airspeed up to 420–430 mph
• Sensor activation touchless hand dryer
• No heating element
• Standby power consumption < 0.5W

This no-heat design reduces energy usage while maintaining strong drying performance.

Sealed HEPA Filtration

The HU02 includes a sealed HEPA filtration system engineered to capture 99.97% of particles as small as 0.3 microns before air reaches users’ hands.

Explore more HEPA hand dryers for hygiene-sensitive commercial environments.

This makes the HU02 suitable for:

• Healthcare facilities
• Corporate offices
• Airports
• Government institutions

Construction & Durability

• Fascia: White polycarbonate
• Mounting bracket: ABS/PBT plastic
• Anti-tamper Pin-Hex screws
• IP24 water ingress protection
• Net weight: 6.32 lbs

The polycarbonate housing provides a lightweight yet durable solution for high-traffic restroom installations.

If you want to reinforce cluster structure, you may link once here to your touchless hand dryers collection (since it is sensor-activated). Only if you have that collection live.

Electrical Specifications

Available in:

Low Voltage: 100–120V
High Voltage: 200–240V

• 9.09A at 110V
• 4.54A at 220V
• Frequency: 50/60 Hz
• Dedicated circuit required
• Heater type: None

Certifications & Accreditations

• ADA compliant
• NSF International
• Carbon Trust certified
• Contributes to LEED certification
• Supports WELL Building Standard Feature W08

Warranty: 5 Year Parts (Self-Service)

Ideal Applications

The Dyson Airblade V HU02 hand dryer is ideal for:

• Schools and universities
• Healthcare facilities
• Office buildings
• Government properties
• Airports
• Retail and hospitality environments

Its slim, hands-under design makes it particularly effective in space-constrained commercial restrooms.
