DYSON® Airblade™ WASH+DRY WD06 WALL Hand Dryer & Tap - Wash and Dry Hands at the Sink (SKU# 247669-01 / 247915-01)

Dyson Airblade Wash+Dry WD06 Wall – Integrated Sink Hand Dryer System

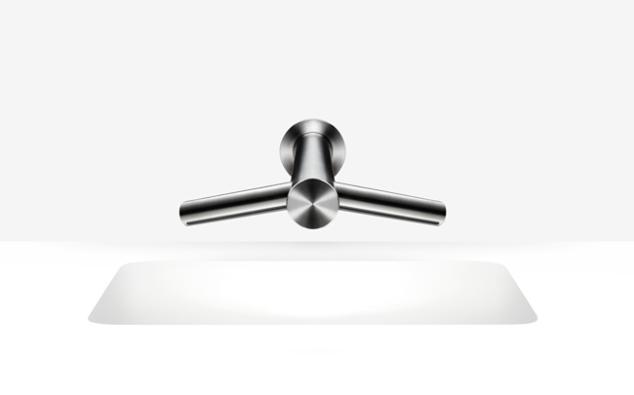

The DYSON® Airblade™ Wash+Dry WD06 Wall is a commercial faucet hand dryer engineered for wall-mounted and deeper sink installations. This integrated sink hand dryer allows users to wash and dry hands directly at the basin, helping reduce water drips, improve restroom cleanliness, and streamline traffic flow in high-traffic commercial environments.

This model is part of our Dyson Airblade hand dryers collection designed for performance-driven commercial restrooms.

⚠ Sink basin not included. Faucet hand dryer only.

SKU: 247669-01 (Low Voltage) / 247915-01 (High Voltage)

Wall Configuration with Extended Reach

The WD06 Wall features an extended spout and under-counter motor system designed for:

• Wall-mounted sink installations
• Deeper basin configurations
• Commercial architectural builds
• Accessibility-focused restroom designs

For standard basin installations, see the Dyson Wash+Dry WD04 Short.

High-Speed Digital Motor Performance

Powered by Dyson’s 1000W digital V4 brushless motor, the WD06 Wall operates at up to 81,000 rpm and switches 5,400 times per second to produce high-velocity airflow.

Performance highlights:

• Dry time: Approximately 14 seconds
• Airspeed: Up to 341 mph
• Infrared activation - Touchless hand dryer
• No heating element
• Standby power consumption: Less than 0.5W

This no-heat design maximizes energy efficiency while maintaining rapid commercial drying performance.

Sealed HEPA Filtration

The WD06 Wall includes a sealed HEPA filtration system that captures 99.97% of particles as small as 0.3 microns before air reaches users’ hands.

Explore additional HEPA hand dryers for hygiene-sensitive commercial environments.

This makes the system suitable for:

• Healthcare facilities
• Airports
• Corporate headquarters
• Government buildings
• Educational institutions

ADA Compliance

The WD06 Wall configuration is ADA compliant when installed according to manufacturer guidelines and appropriate sink specifications.

Because drying occurs directly at the sink, traditional wall protrusion concerns are minimized compared to surface-mounted hand dryers.

For additional accessible models, browse our ADA compliant hand dryers.

Electrical Specifications

Available in:

Low Voltage: 100–120V
High Voltage: 200–240V

• 9.09A at 110V
• 4.54A at 220V
• Frequency: 50/60 Hz
• Dedicated circuit required
• Heater type: None

Construction & Materials

• Tap: Brushed stainless steel (lead-free)
• Under-counter motor bucket: Molded ABS
• Additional materials: Polycarbonate and polypropylene
• IP35 water ingress protection
• Torx T15 exterior screws

Net Weight: 18.47 lb (8.38 kg)

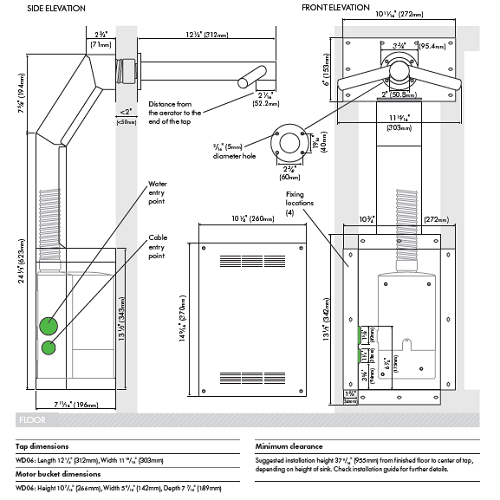

Sink Compatibility Requirements

Minimum internal sink dimensions:

• Width: 15"
• Front-to-back: 13"
• Minimum depth: 5"

Recommended sink materials:

• Porcelain
• Brushed metal

Avoid highly polished reflective chrome surfaces.

When installing multiple taps side-by-side, maintain a minimum spacing of 22 7/8" between centers.

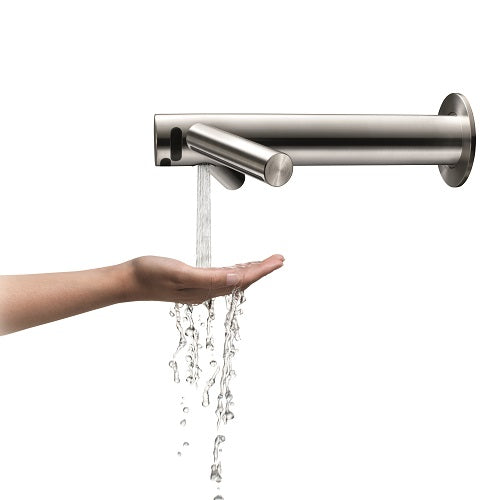

Water Operation

• 0.5 GPM low-flow aerator (standard)
• Optional 1.0 GPM aerator included
• 0.35 GPM laminar aerator available
• Automatic flush every 24 hours
• Water pressure required: 14.5–116 psi
• Thermostatic mixer recommended (not included)

Certifications & Warranty

• 5-Year Parts Warranty
• 5-Year Limited Labor
• HACCP International Certified
• Contributes to LEED certification
• Supports WELL Building Standard Feature W08

Ideal Applications

The Dyson Airblade Wash+Dry WD06 Wall faucet hand dryer is ideal for:

• Airports and transit hubs
• Healthcare facilities
• High-end commercial restrooms
• Universities
• Corporate offices
• Hospitality venues

Its extended reach and wall configuration make it especially suitable for deeper basin and accessibility-focused restroom installations.
