DYSON® Airblade™ WASH+DRY WD04 SHORT Hand Dryer & Tap - Wash and Dry Hands at the Sink (SKU# 247659-01 / 247908-01)

Dyson Airblade Wash+Dry WD04 Short – Integrated Sink Hand Dryer

The Dyson® Airblade™ Wash+Dry WD04 Short is a commercial faucet hand dryer that combines hand washing and high-speed drying directly at the sink. This model is part of our Dyson Airblade hand dryers collection designed for high-traffic commercial restrooms.

 This integrated sink hand dryer system allows users to wash and dry hands in one location, reducing water drips on restroom floors and improving overall hygiene efficiency.

Designed for commercial environments, the WD04 Short reach model is ideal for standard sink installations where users stand closer to the basin.

⚠ Sink basin not included. Hand dryer tap only.

SKU: 247659-01 (Low Voltage) / 247908-01 (High Voltage)

High-Speed Digital Motor Performance

Powered by Dyson’s 1000W digital V4 brushless motor, the WD04 operates at up to 81,000 rpm and switches 5,400 times per second to deliver powerful, controlled airflow.

Performance specifications:

• Dry time: Approximately 14 seconds
• Airspeed: Up to 331–341 mph
• Infrared activation - Touchless hand dryer
• No heating element
• Standby power consumption: < 0.5W

This no-heat, high-velocity air design reduces energy usage while maintaining fast commercial drying performance.

Sealed HEPA Filtration for Hygienic Operation

The Dyson WD04 features a sealed HEPA filtration system that captures 99.97% of particles as small as 0.3 microns before air reaches users’ hands.

Explore more HEPA hand dryers for hygiene-sensitive environments.

This makes it suitable for hygiene-sensitive environments such as:

• Healthcare facilities
• Airports
• Corporate offices
• Government buildings
• Schools and universities

For additional filtered options, browse our HEPA hand dryers collection.

ADA Compliance

The WD04 Short model is ADA compliant when installed according to manufacturer guidelines and appropriate sink specifications.

Its compact faucet-mounted configuration supports accessibility requirements while eliminating wall-mounted protrusion concerns.

For additional accessible models, explore our ADA compliant hand dryers.

Electrical Specifications

Available in:

Low Voltage: 100–120V
High Voltage: 200–240V

• 9.09A at 110V
• 4.54A at 220V
• Frequency: 50/60 Hz
• Dedicated hand dryer circuit required
• Heater type: None

Construction & Materials

• Tap: Brushed stainless steel (lead-free)
• Under-counter motor bucket: Molded ABS
• Additional materials: Polycarbonate & polypropylene
• IP35 water ingress protection
• Exterior screw type: Torx T15

Net Weight: 9.37 lb (4.25 kg)

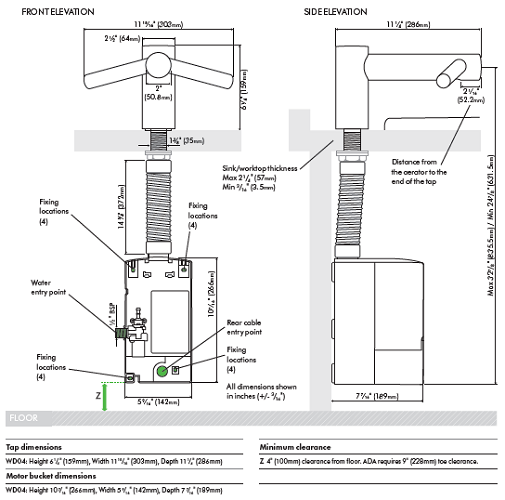

Sink Compatibility Guidelines

The Dyson Wash+Dry WD04 sink hand dryer is compatible with most basin types when properly installed.

Minimum internal sink dimensions:

• Width: 15"
• Front-to-back depth: 13"
• Minimum depth: 5"

Recommended materials:

• Porcelain
• Brushed metal

Avoid highly polished reflective chrome surfaces.

For deeper sink installations, see the Dyson Wash+Dry WD06 Long model.

Water Operation

• Water flow rate: 0.5 GPM low-flow aerator (standard)
• Optional 1.0 GPM aerator included
• 0.35 GPM multi-spray laminar aerator available
• Automatic flush every 24 hours (60 seconds)
• Water pressure required: 14.5–116 psi
• Thermostatic mixer recommended (not included)

Certifications & Warranty

• 5-Year Parts Warranty
• 5-Year Limited Labor
• HACCP International Certified
• Contributes to LEED certification
• Supports WELL Building Standard Feature W08

Ideal Applications

The Dyson Airblade Wash+Dry faucet hand dryer is ideal for:

• Airports and transit hubs
• Corporate headquarters
• Healthcare facilities
• Universities
• Hospitality venues
• High-traffic commercial restrooms

By integrating washing and drying at the sink, facilities can improve restroom cleanliness while reducing maintenance labor.
