Saniflow® KT009CS Machflow® Recess Kit – ADA Compliant (Satin Stainless Steel)

Saniflow® KT009CS Machflow® Recess Kit (ADA Compliant)

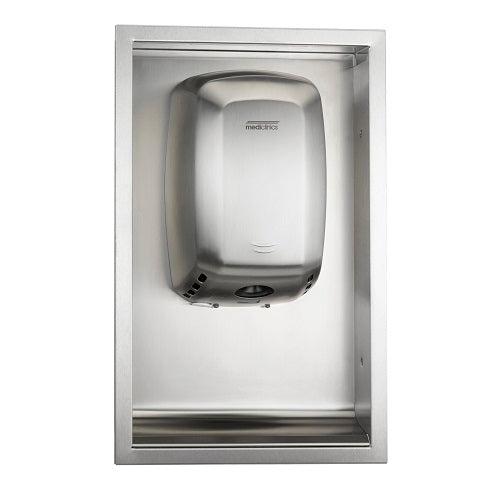

The Saniflow® KT009CS Machflow® Recess Kit is designed to make Machflow® and Machflow® Plus commercial hand dryers ADA compliant by reducing wall projection to under 4 inches.

This recessed cabinet allows Machflow M09 series dryers to meet ADAAG projection requirements for public restrooms in the United States.

✔ Compatible with Machflow® and Machflow® Plus
✔ ADA compliant when installed properly
✔ Satin stainless steel finish (AISI 304)
✔ Commercial-grade, vandal-resistant construction

Note: Hand dryer sold separately.

Matchflow Hand Dryers

Why You Need a Machflow Recess Kit

Surface-mounted hand dryers often exceed the ADA 4-inch projection limit. The KT009CS recess kit allows your Machflow hand dryer to be recessed into the wall cavity, reducing forward projection to meet accessibility standards.

Ideal for:

• Schools

• Healthcare facilities

• Government buildings

• Airports

• Commercial office properties

• Public restrooms

ADA Compliance Details

The KT009CS kit:

• Reduces projection to under 4 inches from finished wall

• Helps comply with ADA Standards for Accessible Design (ADAAG)

• Converts surface-mounted Machflow units into ADA-compliant installations

When properly installed with:

• 👉 Saniflow® M09ACS Machflow® Hand Dryer

• 👉 Saniflow® M09AC Machflow® Hand Dryer

• 👉 Saniflow® M09AB Machflow® Hand Dryer

• 👉 Saniflow® M09A Machflow® Hand Dryer

the unit becomes ADA compliant.

ADA compliant hand dryers

Construction & Materials

Model: KT009CS
Material: 18-8 AISI 304 Stainless Steel
Finish: Satin

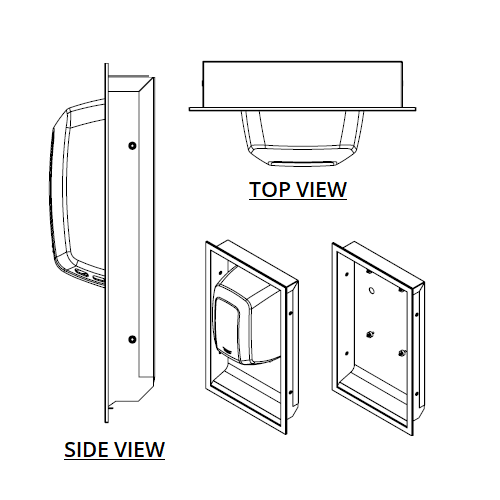

Cabinet Construction:

• Two welded stainless steel sections

• 20GA 18-8 stainless steel dryer mounting area

• 4 pre-welded M5 mounting bolts

Frame:

• 22GA AISI 304 stainless steel

• Four Ø 1/4" mounting holes

Includes:

• 4 M5 nuts

• 4 M5 washers

• 4 rubber vibration silent blocks

Does NOT Include:

• Hand dryer

• Wall mounting screws or anchors

(Stainless steel screws recommended for installation.)

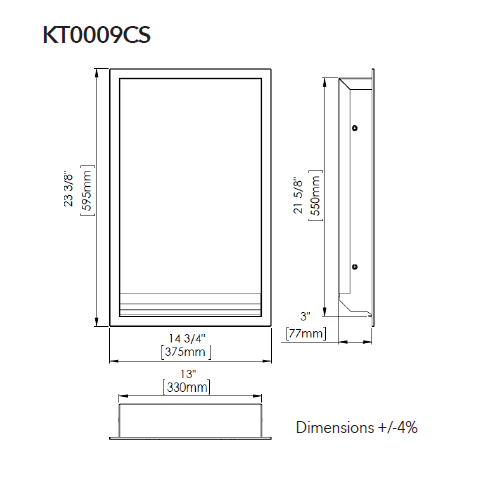

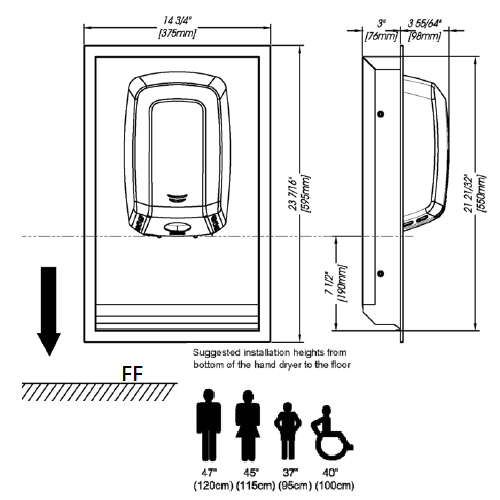

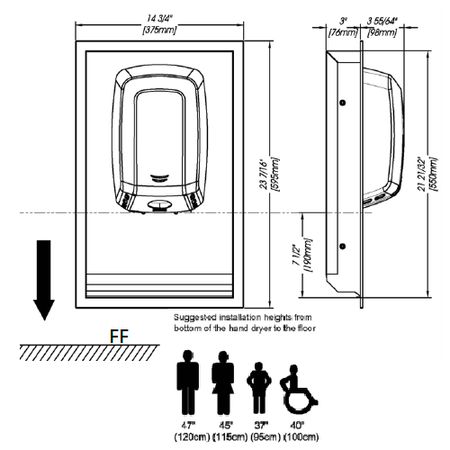

Technical Specifications

Cabinet Dimensions:
23 3/8” H x 14 3/4” W x 3” D

Rough Wall Opening:
21 5/8” H x 13” W x 3 3/8” D

Outer Projection:
3 55/64”

Wall Accommodation Depth:
3 3/8”

Built for Commercial Durability

The KT009CS is engineered for:

• High-traffic public facilities

• Long-term commercial use

• Vandal resistance

• Clean aesthetic integration

The satin stainless finish blends seamlessly into modern commercial restroom designs.

Saniflow Commercial Hand Dryers

Frequently Asked Questions

Is the Machflow recess kit required for ADA compliance?

Yes. Surface-mounted Machflow dryers exceed ADA projection limits. The KT009CS recess kit reduces projection to meet ADA requirements.

Does the recess kit include the hand dryer?

No. The hand dryer must be purchased separately.

What models does this recess kit fit?

It is compatible with:

• Machflow® (M09 Series)

• Machflow® Plus models

What finish is available?

Satin stainless steel (AISI 304).
