How fast does the M17AF-UL hand dryer dry hands?

The M17AF-UL dries hands in approximately 10 to 12 seconds using high-speed airflow up to 250 mph.

Does the M17AF-UL include HEPA filtration?

Yes. It includes a HEPA media filter designed to capture airborne particles such as dust, pollen, and bacteria.

Can the speed and power be adjusted on the M17AF-UL?

Yes. The unit includes adjustable motor speed from 23,000 to 32,000 RPM and a heating element that can be turned on or off from 0 to 500 watts.

What voltage does the M17AF-UL support?

The M17AF-UL supports universal voltage including 100 to 120 volts, 208 volts, and 220 to 240 volts.

How does the M17AF-UL sensor work?

The unit uses an infrared sensor that activates automatically when hands are detected and shuts off when hands are removed. The detection range is adjustable from 2 to 8 inches with a 30-second auto shutoff.

Is the M17AF-UL energy efficient?

Yes. The unit operates between approximately 180 and 850 watts depending on settings, helping reduce energy costs.

What are the installation requirements for the M17AF-UL?

A dedicated circuit and proper grounding are required. GFCI is recommended, and the unit should be mounted securely into a wall stud.

Where should the M17AF-UL be installed in a restroom?

It is best installed between sinks and exits and spaced to avoid congestion. It should not be placed directly between sinks or near urinals or showers.

How many hand dryers are needed per restroom?

For high-traffic restrooms, approximately two dryers per three sinks are recommended. For moderate traffic, one dryer per two to three sinks is typically sufficient.

Skip to product information

Saniflow® Speedflow® Plus M17AF-UL Hand Dryer – Cast Iron, HEPA, ADA Compliant

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Saniflow

Saniflow® Speedflow® Plus M17AF-UL Hand Dryer – Cast Iron, HEPA, ADA Compliant

Name: Saniflow® Speedflow® Plus M17AF-UL Hand Dryer – Cast Iron, HEPA, ADA Compliant
Brand: Saniflow
SKU: M17AF-UL
Price: 530.00 USD
Availability: InStock

SKU: M17AF-UL

(0)

Regular price $530.00

In stock

Usually ships within 24 hours

Quantity

This item is a deferred, subscription, or recurring purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Payment methods

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping

100% secure payments

Industry leading brands

Saniflow SKU: M17AF-UL

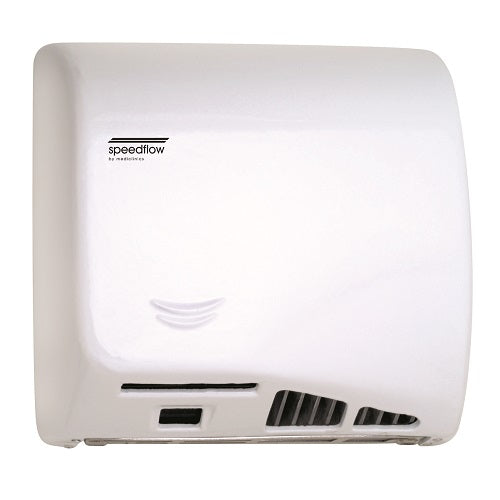

Saniflow® Speedflow® Plus M17AF-UL High-Speed Commercial Hand Dryer

The Saniflow® Speedflow® Plus M17AF-UL is a high-speed, ADA-compliant commercial hand dryer engineered for very high-traffic restroom environments. Featuring a heavy-duty 3/16” cast iron cover with a white porcelain enamel finish, this model delivers maximum durability, vandal resistance, and long-term reliability.

Designed with adjustable motor speed, optional heat control, and integrated HEPA filtration, the M17AF-UL provides fast 10–12 second dry times while maintaining energy efficiency and reduced noise levels.

This surface-mounted model is UL and CSA approved and suitable for schools, healthcare facilities, airports, government buildings, and other demanding commercial environments.

View all Saniflow Hand Dryers

Key Performance Features

✔ 10–12 second high-speed drying
✔ HEPA filter cartridge improves restroom air quality
✔ Cast iron white porcelain-enamel cover (maximum durability)
✔ Adjustable motor speed (23,000–32,000 RPM)
✔ Adjustable heating element (0 or 500W ON/OFF)
✔ Universal voltage (100–120V; 208V; 220–240V)
✔ Low noise operation (as low as 57 dBA in ECO mode)
✔ Surface-mounted ADA-compliant installation
✔ UL 499 and CSA C22.2 certified
✔ IP23 splash protection

Heavy-Duty Cast Iron Construction

The M17AF-UL features a 3/16” (4.5 mm) one-piece cast iron cover with a white porcelain finish, offering enhanced vandal resistance and durability in high-abuse environments.

The aluminum base plate incorporates acoustic dampening elements to reduce vibration and operational noise.

Advanced HEPA Filtration

The integrated HEPA filter medium cartridge captures solid particles in suspension, including:

• Dust
• Pollen
• Tobacco smoke
• Fungi spores
• Dust mites

This significantly improves restroom air quality compared to standard warm-air dryers.

Optional odor neutralizer tablets are also available.

Explore our Hepa Hand Dryer Collection

Adjustable Power & Energy Efficiency

The Speedflow Plus M17AF-UL allows facilities to customize energy consumption:

• Total Power Range: 180–850W
• Motor Power: 350W
• Heating Element: 0W or 500W (manually switchable)
• Consumption: 2.5–7A

In ECO mode (heat off), noise levels drop to as low as 57 dBA and electrical usage is reduced.

This makes the M17AF-UL suitable for LEED projects and energy-conscious facilities.

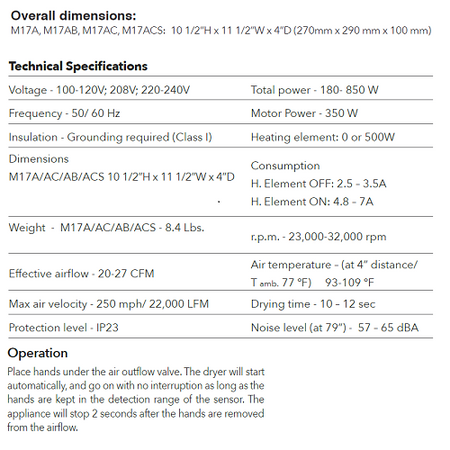

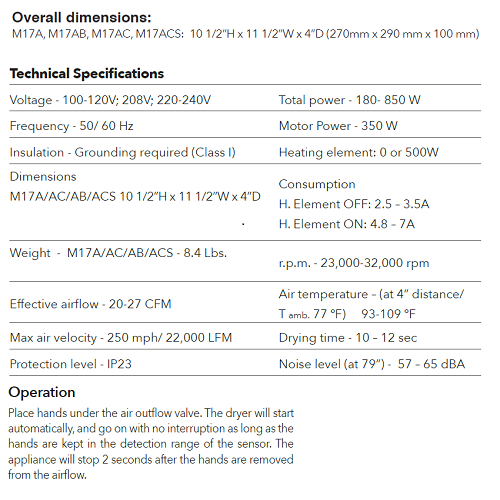

Performance Specifications

• Dry Time: 10–12 seconds
• Maximum Air Velocity: 250 mph (22,000 LFM)
• Effective Airflow: 20–27 CFM
• Air Temperature: 93–109°F (at 4” distance)
• Motor Speed: 23,000–32,000 RPM
• Noise Level: 57–65 dBA
• Protection Rating: IP23
• Insulation: Class I (grounding required)

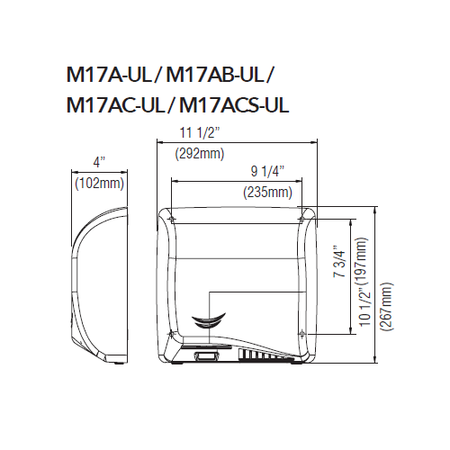

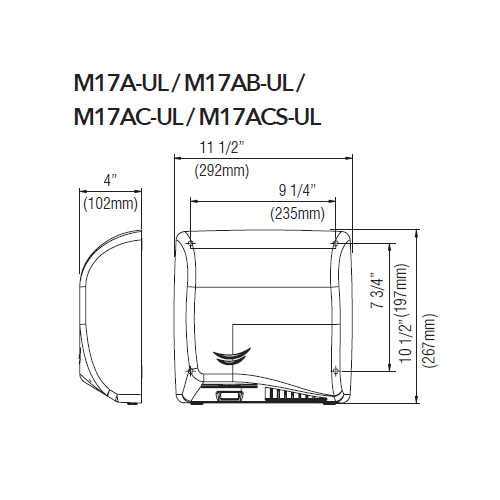

Dimensions & Weight

• Dimensions: 10-5/8” H x 11-5/8” W x 4” D
• Weight: 15.65 lbs

Electrical Specifications

• Voltage: 100–120V; 208V; 220–240V
• Frequency: 50/60 Hz
• Dedicated circuit required
• GFCI recommended

Recommended Applications

The Saniflow M17AF-UL is ideal for:

• Schools & Universities
• Airports & Transit Facilities
• Healthcare Facilities
• Government Buildings
• Retail & Commercial Spaces
• High-Traffic Public Restrooms

View all our commercial bathroom hand dryers

Certifications & Compliance

• UL 499 Listed
• CSA C22.2 Certified
• Building Green Approved
• ADA Compliant (Surface Mounted)

View all our ADA compliant hand dryers

File Specs Download

1. How fast does the M17AF-UL dry hands?

The M17AF-UL dries hands in approximately 10–12 seconds using high-speed airflow up to 250 mph.

2. Is the M17AF-UL ADA compliant?

Yes. The unit is surface-mounted and ADA compliant, making it suitable for commercial and public restrooms.

3. How durable is the M17AF-UL?

This model features a 3/16" thick cast iron cover with a porcelain enamel finish, designed for vandal-resistant, high-traffic environments.

4. Does it have a HEPA filter?

Yes. It includes a HEPA media filter that captures particles like dust, pollen, and bacteria, improving air quality in restrooms.

5. How loud is the M17AF-UL?

The noise level ranges from 57–65 dBA, depending on speed settings.

6. Can you adjust power and energy usage?

Yes. The unit allows:

Adjustable motor speed (23,000–32,000 RPM)
Optional heating element ON/OFF (0–500W)

This lets you balance noise, speed, and energy consumption.

7. What voltage does it require?

The M17AF-UL supports universal voltage:

100–120V
208V
220–240V

8. How is it activated?

The dryer uses an infrared sensor that automatically turns on when hands are detected and shuts off when removed.

Detection range: 2"–8" adjustable
Auto shutoff after 30 seconds for safety

9. Is it energy efficient?

Yes. It’s designed to be energy-efficient, with adjustable power between 180–850W depending on settings.

10. What are the installation requirements?

Requires a dedicated circuit
Must be properly grounded
GFCI is recommended
Should be mounted partially to a stud

11. Where should this dryer be installed?

Best placement:

Between sink and exit
Distributed to avoid congestion

Avoid:

Directly between sinks
Near urinals or showers

12. How many dryers are needed per restroom?

For high-traffic areas:

~2 dryers per 3 sinks

For normal traffic:

1 dryer per 2–3 sinks
