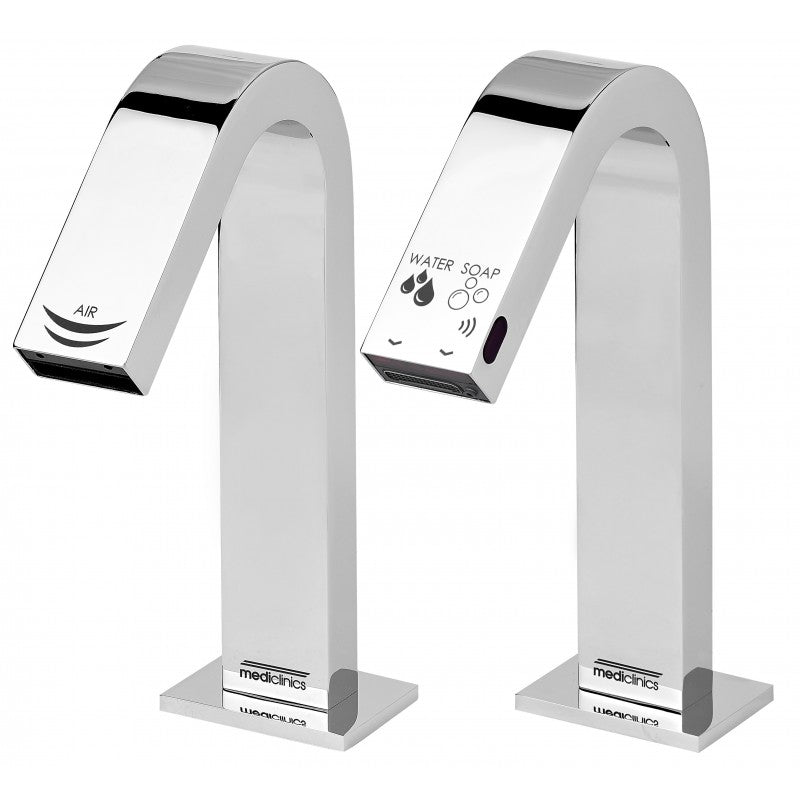

Touchless All-in-One Faucet System with Integrated Hand Dryer, Soap & Water
The Saniflow UCM092A-UL-I All-in-One faucet system is a countertop-mounted, fully touchless solution that combines soap dispensing, water flow, and high-speed hand drying into a single unit. Designed for modern commercial restrooms, this system improves hygiene, efficiency, and space utilization by keeping the entire handwashing and drying process at the sink.
Powered by the Machflow Plus high-speed dryer, the system delivers drying times of 10–15 seconds with air speeds up to 250 mph, eliminating the need for separate wall-mounted dryers.
Why This System Stands Out
Unlike traditional restroom setups (soap dispenser + faucet + wall dryer), this unit consolidates all functions into one streamlined system.
-
Touch-free soap, water, and drying from one faucet
-
Reduces water dripping on floors (all drying happens over sink)
- Saves space and improves restroom flow
- Improves hygiene with minimal user contact
- Reduces installation clutter and maintenance points
👉 According to the spec sheet, this system can generate over 73% cost savings vs comparable solutions.
Performance Overview (Hand Dryer System)

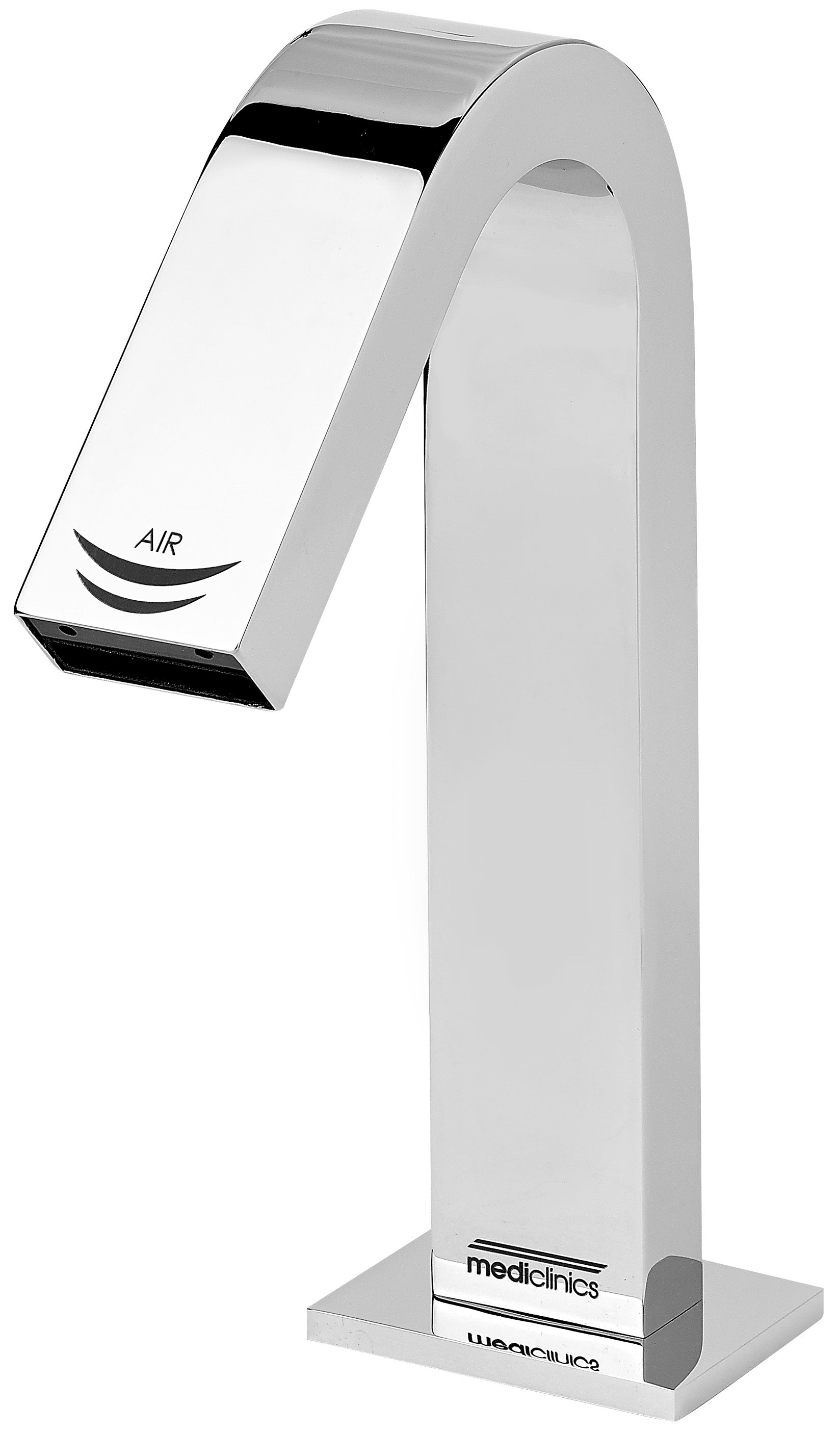

The integrated dryer is based on the Machflow Plus platform, delivering high-speed drying with adjustable performance.
-
Dry Time: 10–15 seconds
-
Air Speed: up to 250 mph
-
Power Range: 600–1,300W
-
Motor Speed: 19,000–28,000 RPM
-
Noise Level: 67–72 dBA
-
Airflow: up to ~61.8 CFM
-
Air Temperature: ~108°F
👉 This is a true high-speed system, comparable to standalone premium dryers.
Shop all Saniflow hand dryers
Advanced Hygiene Features
The UCM092A-UL-I integrates multiple hygiene technologies:
-
HEPA filtration system improves air quality
-
Ion Hygienic technology purifies air with negative ions
-
Touchless infrared sensors for all functions
-
Water containment design reduces splash and contamination
This makes it one of the most hygienic restroom systems available.

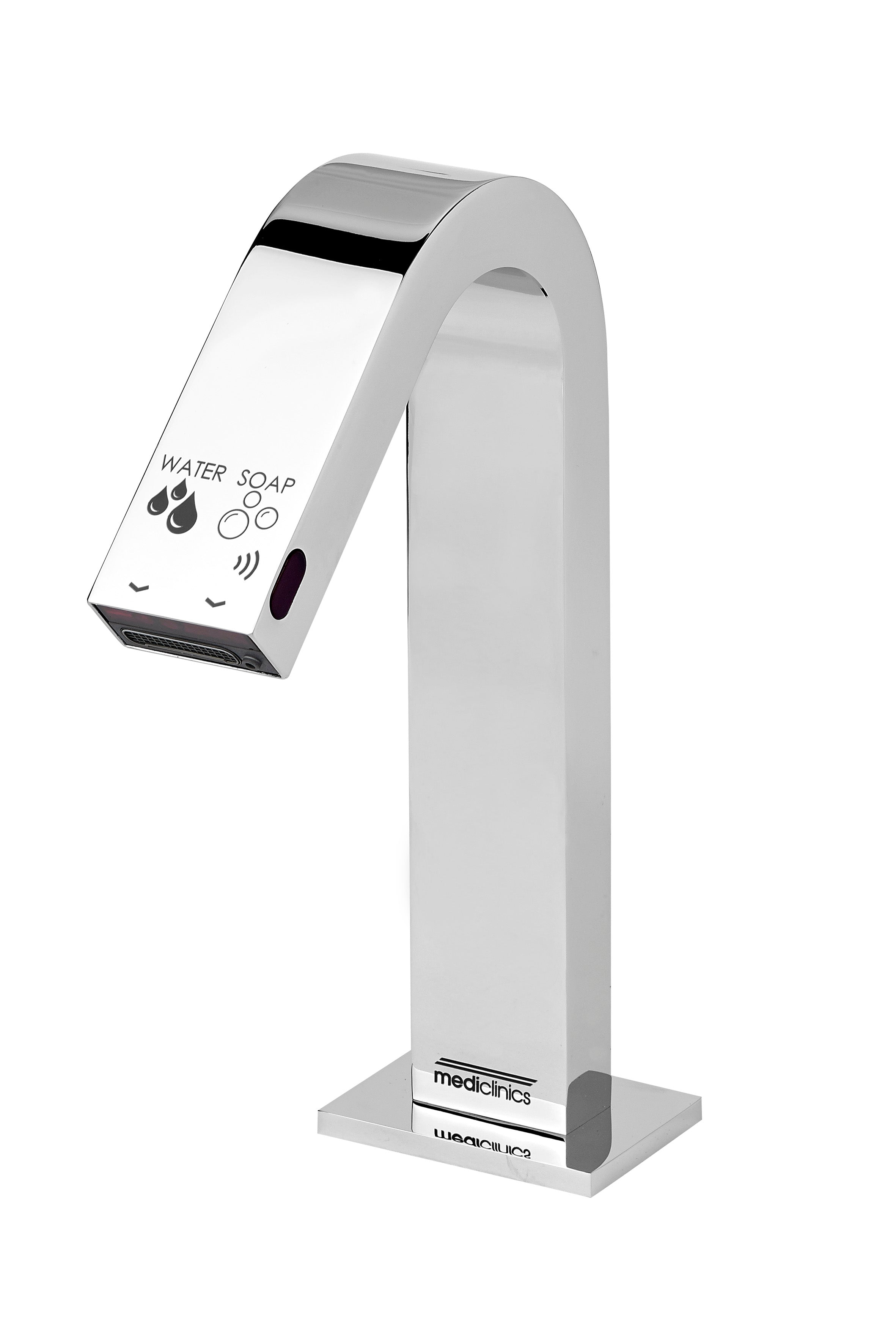

Integrated Faucet & Soap System
-
Dual sensor faucet (separate sensors for soap and water)
- Adjustable soap dosing system
- 0.4-gallon refillable soap container
- Optimized water flow for efficiency
- Chrome-plated brass construction (bright finish)
👉 The system dispenses soap and water from the same faucet, simplifying the entire handwashing process.
Smart Design & Functionality
-
Countertop-mounted design (clean, modern look)
- All-in-one system reduces wall clutter
- Drying occurs over sink (no floor water)
- Compact installation footprint
- Optimized for high-traffic restrooms
👉 The spec sheet emphasizes reduced splashing and improved cleanliness around the sink area.
Key Features
- All-in-one faucet, soap dispenser, and hand dryer
- High-speed drying (10–15 sec)
- HEPA filter + ionizer
- Touchless sensor operation
- Space-saving countertop design
- Eco-friendly, cost-saving system
Best For
The UCM092A-UL-I is best suited for:
- Airports and transportation hubs
- High-end commercial buildings
- Luxury Restaurants and hospitality
- Shopping centers
- Modern, design-focused restrooms
👉 Choose this system if you want maximum efficiency, hygiene, and space optimization.
Dimensions & Installation
Hand Dryer Unit:
-
Size: 13” x 8 3/8” x 6 3/4”
-
Weight: 11.5 lbs
Faucet System:
- Requires minimum sink depth of 4.72”
- Designed for countertop mounting
- Requires dedicated electrical + plumbing integration
👉 Installation details and mounting diagrams are shown on pages 2–3 of the spec sheet, including sink compatibility requirements.
What to Expect
- Faster drying than traditional systems
- Requires coordinated plumbing + electrical install
- Higher upfront cost, lower long-term cost
- Eliminates need for wall-mounted dryers
- Cleaner restroom environment (less water on floors)
👉 This is a system upgrade, not just a product purchase.
