WORLD DRYER® L-974A SLIMdri™ Hand Dryer - White Epoxy on Aluminum Automatic Universal Voltage Surface-Mounted ADA Compliant

World Dryer L-974A SLIMdri™ Hand Dryer – ADA Compliant, White Epoxy

The World Dryer L-974A SLIMdri™ hand dryer is a surface-mounted ADA compliant commercial hand dryer engineered for projects requiring slim wall projection and dependable drying performance. With a compact 3.9-inch depth, the L-974A is designed to meet the ADA 4-inch protrusion requirement when installed properly.

👉 ADA compliant hand dryers

Ideal for schools, healthcare facilities, government buildings, airports, and commercial restrooms where accessibility compliance is mandatory.

Ultra-Slim ADA Profile (3.9” Projection)

Under ADA guidelines, wall-mounted objects installed between 27” and 80” above the finished floor must not project more than 4 inches into circulation paths.

The L-974A projects just 3.9 inches from the wall, making it suitable for:

• Narrow restroom layouts
• High-traffic corridors
• Code-regulated commercial projects
• Facilities subject to inspection

White Epoxy Aluminum Construction

The L-974A features:

• Die-cast aluminum cover
• White epoxy paint finish
• Antimicrobial surface protection
• Tamper-resistant mounting screws
• Durable commercial-grade housing

Epoxy-painted covers incorporate antimicrobial technology to help inhibit the growth of bacteria, mold, and fungus on treated surfaces.

For stainless steel finish options, see the brushed model below.

👉 L-973A stainless steel SLIMdri

Commercial Performance Specifications

Despite its slim design, the L-974A delivers strong commercial airflow:

• Motor Speed: 13,000 RPM
• Airflow: 70 CFM
• Air Velocity: 140 MPH (12,320 LFM)
• Power: Up to 950 Watts
• Temperature Rise: 48°F
• Voltage: 110–120V / 208V / 220–240V
• Frequency: 60 Hz
• IP23 water ingress protection
• 60-second vandal shut-off

This performance profile makes it ideal for moderate to high-traffic commercial environments.

Universal Voltage & Energy Efficiency

The L-974A accepts:

• 110–120V
• 208V
• 220–240V

Universal voltage simplifies installation and reduces electrical planning complexity.

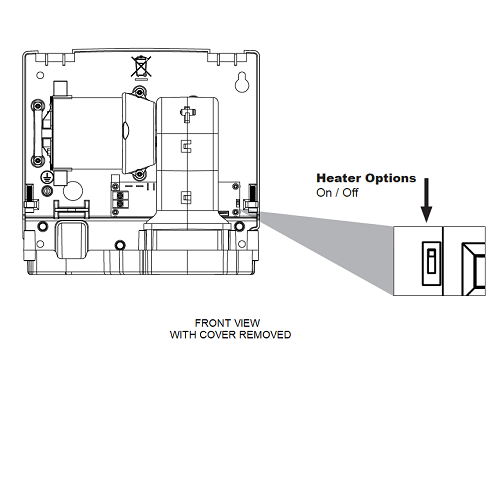

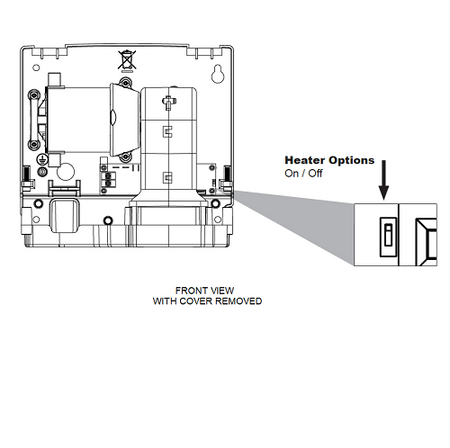

With ON/OFF heat control, facilities can lower power consumption when heating is not required, helping reduce operating costs.

👉 energy efficient hand dryers

Built for Commercial Use

The L-974A is engineered for continuous commercial operation and durability:

• Thermally protected universal brush motor
• Automatic infrared sensor activation
• 3-second run-on time
• Automatic reset thermal cut-off
• UL certified

Designed for long-term use in:

• Schools and universities
• Hospitals and healthcare facilities
• Government buildings
• Airports and transit hubs
• Restaurants and hospitality venues
• Office buildings

👉 World Dryer hand dryers

Technical Specifications

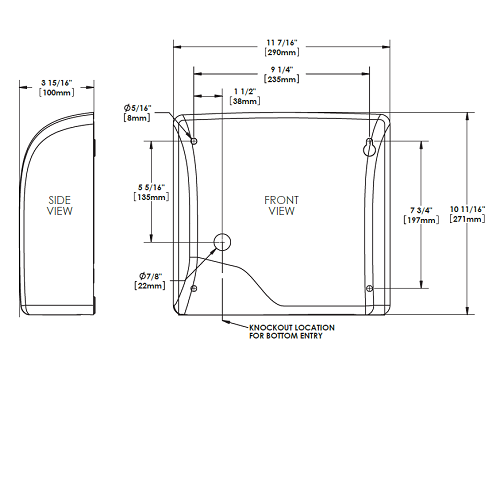

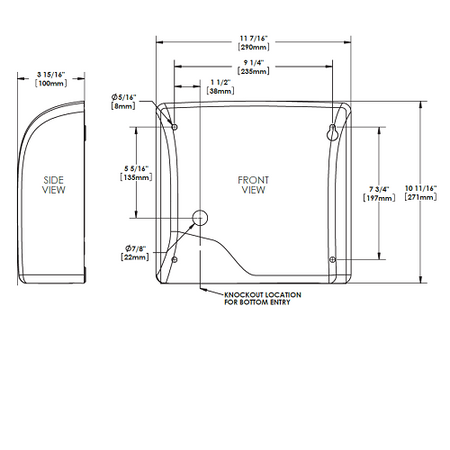

Dimensions:
10.7” H x 11.43” W x 3.9” D

Unit Weight:
9.0 lbs

Electrical (60 Hz):
110–120V – 8.3 Amps – 950W
208V – 3.7 Amps – 775W
220–240V – 4.1 Amps – 950W

Mounting: Surface mounted
Activation: Automatic infrared sensor
Ingress Protection: IP23
